Our Robot Fleet

Coordinated aerial and ground robots work together using AI to detect casualties, assess injuries, and support critical decisions in dangerous environments. We're continuously improving and integrating our system for better performance.

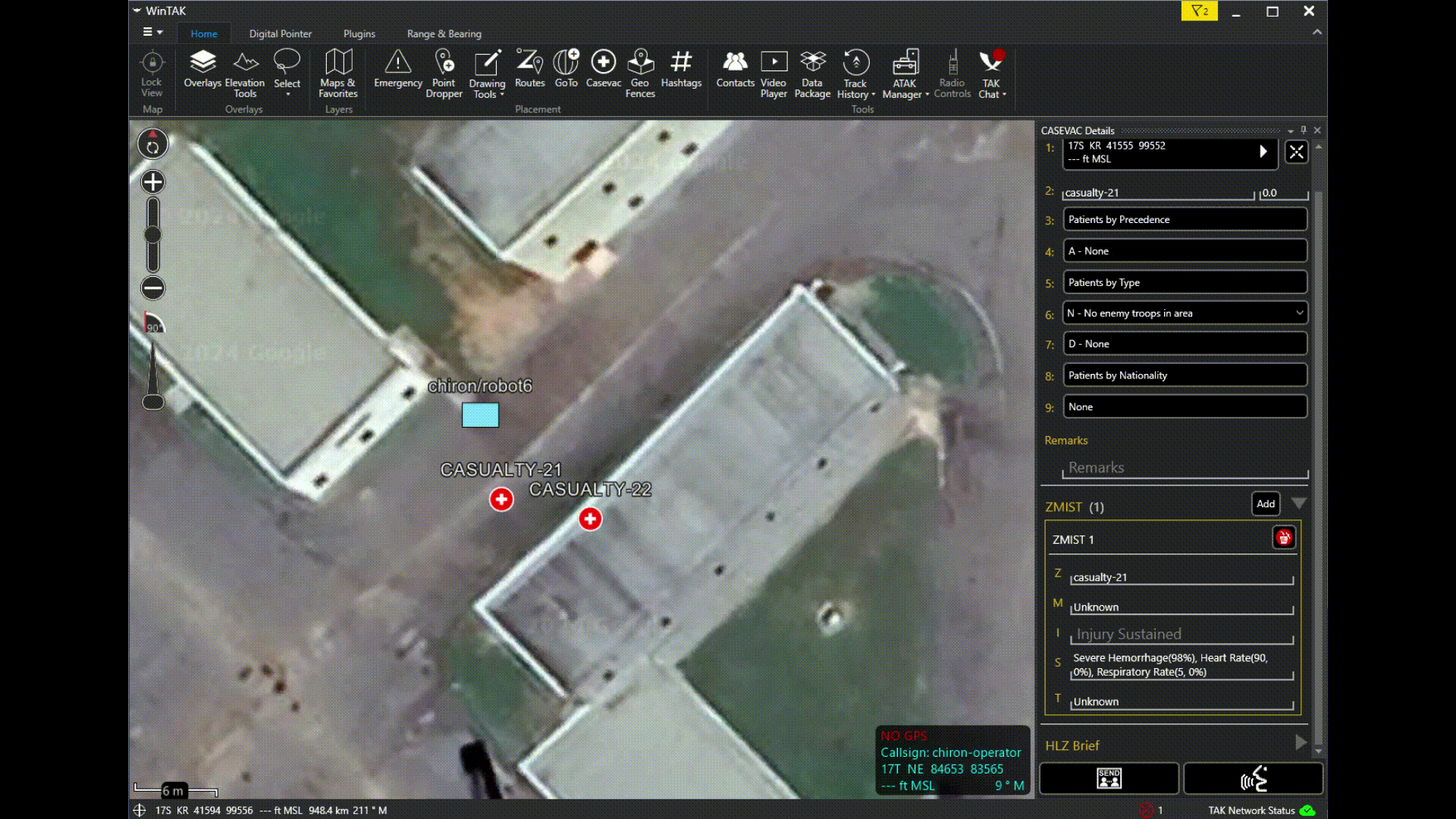

CHIRON Command System
Mission Control

CHIRON Command System

Our central command and control platform coordinates all robots in the field and processes the information they collect. This system serves as the center for the entire operation, providing first responders with actionable intelligence for optimal resource allocation.

Data Fusion AI Triage Tactical Mapping Resource Optimization Situational Awareness

Technical Specifications

Computing
High-performance edge server with GPU
Connectivity
Mesh network with redundant communication

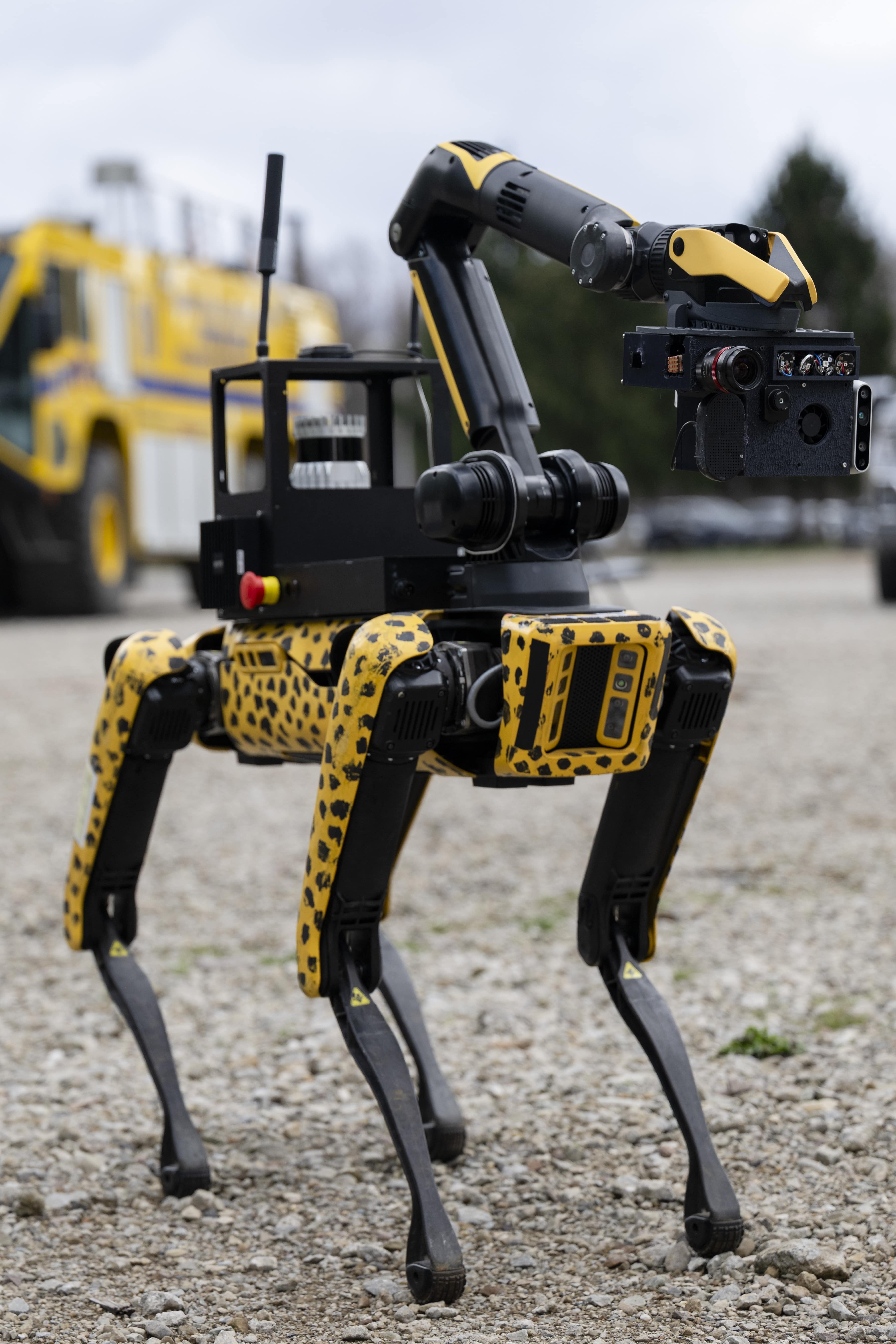

CHIRON Quadruped Responder

Our ground-based quadruped robot is designed to navigate challenging terrain and reach casualties for detailed assessment. On top of latest legged robotics technology from Spot, we've equipped it with specialized sensors and a manipulation arm for close-range casualty assessment.

All-Terrain Navigation Vital Sign Assessment Medical Manipulation Obstacle Traversal Close-Range Assessment

Technical Specifications

Robot Body
Sensors
Lidar, GPS
Compute
NVIDIA Jetson AGX
Manipulation Arm Payload
Sensors
Multispectral Camera, Radar, Microphone, Depth Camera, Thermal Camera
Compute
NVIDIA Jetson NX
CHIRON Quadruped Robot
Ground Assessment

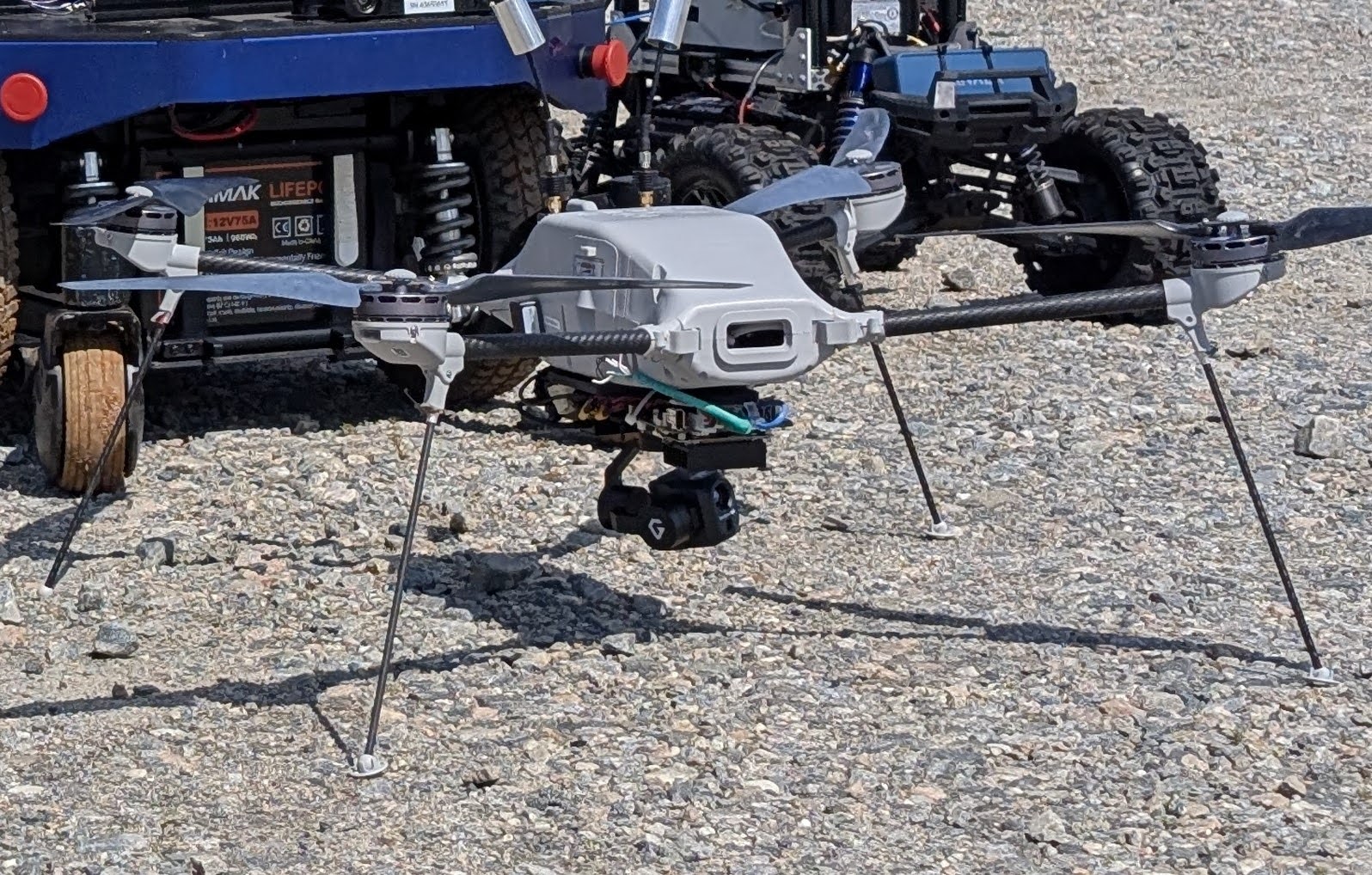

CHIRON Indago 4 Scout

Our advanced Lockheed Martin UAV fleet provides extended reconnaissance capabilities with superior endurance and sensor payloads. These drones feature field-swappable payload systems for mission-specific configurations, enabling comprehensive area surveillance and detailed casualty detection in challenging environments.

Extended Flight Time High-Resolution Imaging Thermal Detection Swappable Payloads Mesh Network Integration

Technical Specifications

Flight Time
35-45 minutes
Weight
4.55-5.3 kg (configuration dependent)
Dimensions
0.88 × 0.88 × 0.32 m (with legs)
Max Speed
2 m/s (capped)
Power Source
2 × LiPo 23.4V 6800mAh 159Wh
Sensors
Dual EO/IR Gimbals (64MP EO, 640×512 IR), Laser Rangefinder
Computing
NVIDIA Jetson Orin Nano
CHIRON Indago 4 UAV
Extended Reconnaissance
CHIRON Aerial Drone
Aerial Reconnaissance

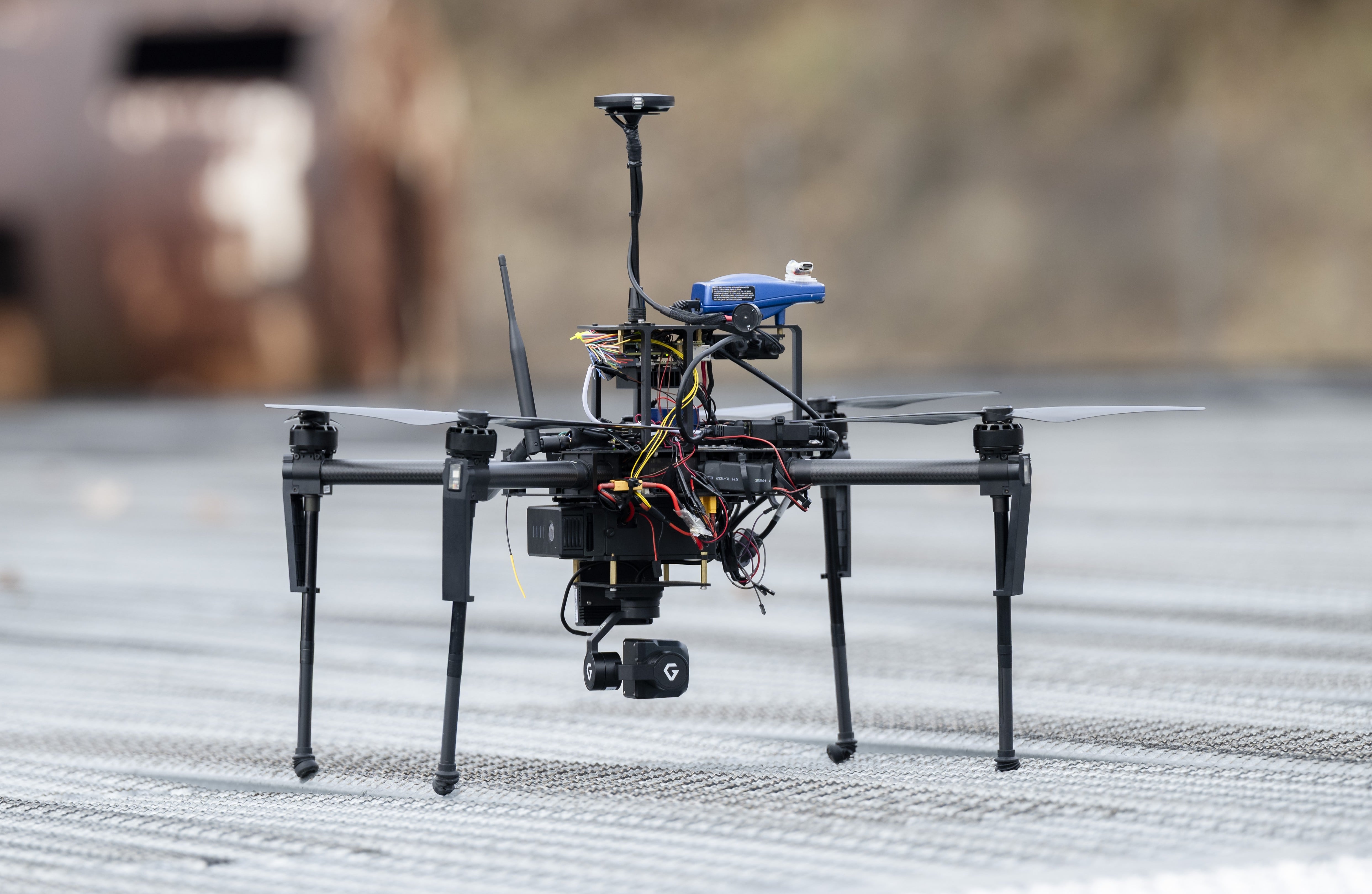

CHIRON Scout Drone

Our aerial reconnaissance platform equipped with advanced sensors for casualty detection and initial assessment from above. These drones can quickly survey large areas and identify potential casualties, providing crucial information to the ground team.

Rapid Area Coverage Thermal Detection Onboard AI Processing Autonomous Navigation Real-time Casualty Identification

Technical Specifications

Flight Time
15 minutes
Operating Range
5 km
Max Speed
22 m/s
Sensors
Thermal & 8K RGB Camera, GPS, IMU, Barometer
Computing
NVIDIA Jetson Orin NX
